Restaurant DIM SUM STORY

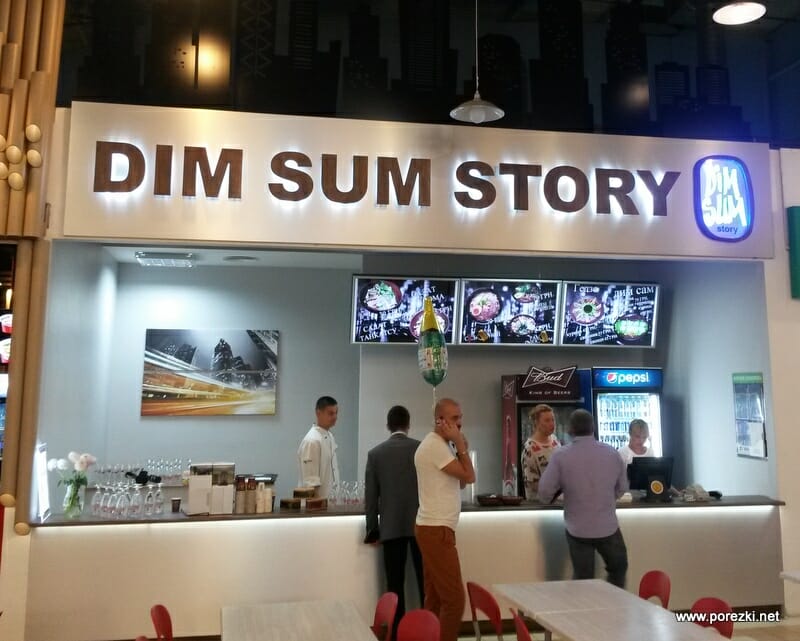

We represent you, the project of the restaurant of traditional Chinese food “DIMSUM STORY” implemented by our company. This object is located in Kiev in the first “Dreamtown”, so that everyone can admire and at the same time enjoy traditional Chinese cuisine.

So, what is there unusual and interesting?

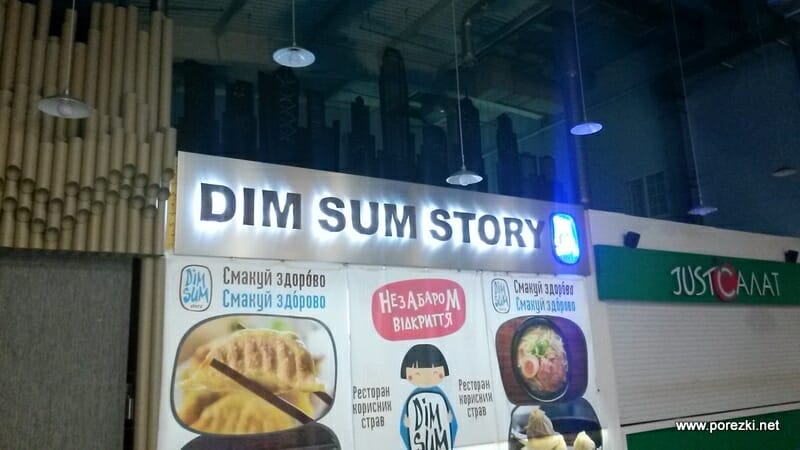

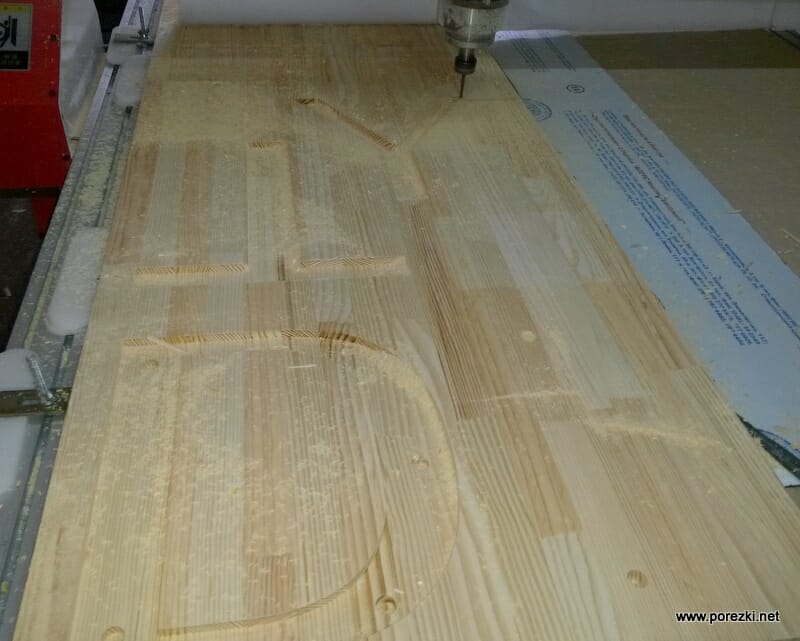

The most unusual and interesting solution is wooden letters with backlighting. The letters were made from a furniture pine shield with a thickness of 38 mm. On the CNC milling and engraving machine, a sample was made for diodes, and pruning was also performed on the milling cutter. Then the letters were ground and the layers of stain chosen by the customers of color were painted, namely, a walnut tree and a semi-matt lacquer. By the way, the working surface of the bar rack and the frame of the ailayt were treated in the same way.

Then inside the letters were installed LED modules, power wires were output and attached, previously cut out on the laser machine letters of thin milk acrylic on the back wall to disperse the light.

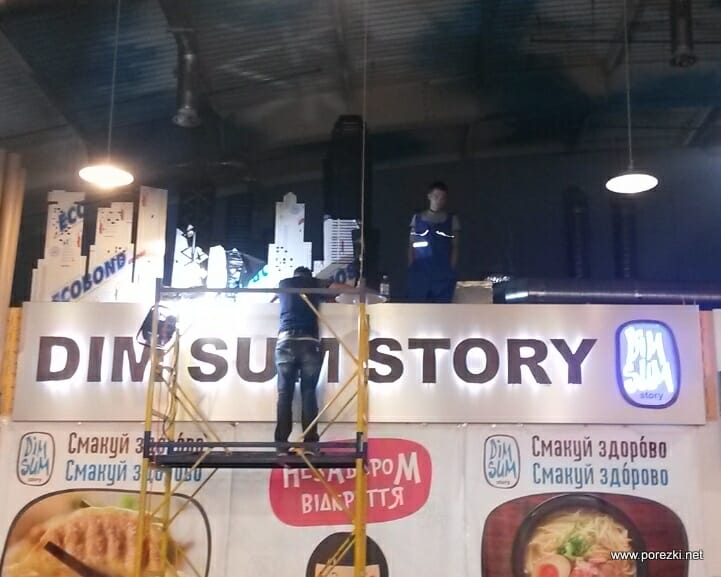

The logo of the restaurant engraved on a 6mm cast acrylic with illumination in the end with blue diodes was also installed on the main signboard, which, by the way, was already assembled on the spot on a metal frame. So it was not possible to deliver the finished 6-meter structure to the 3rd floor.

The basis of the signboard was the composite panels “brushet”. The same composite was also used on the bar counter.

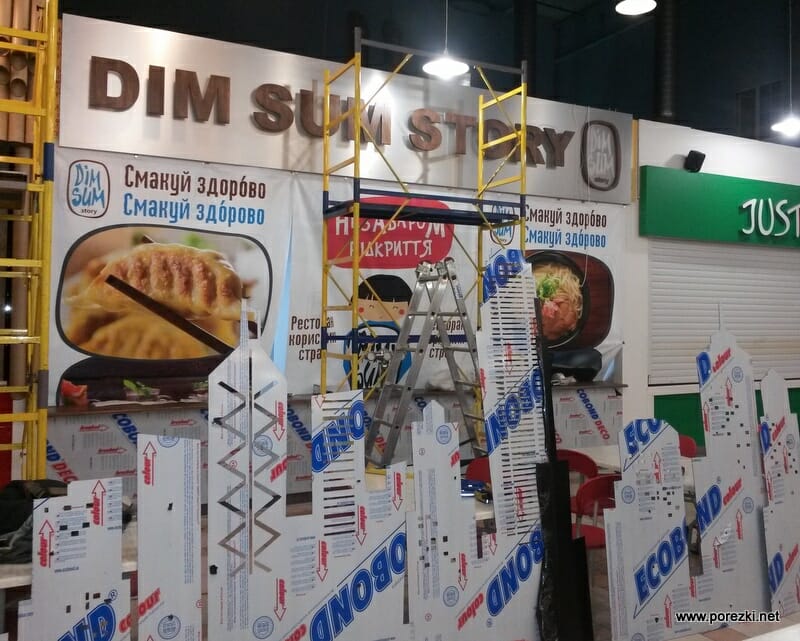

Also, the composite, but already black, was used to make the silhouette of Hong Kong on the roof of the restaurant. buildings were cut on a CNC milling cutter.

Also our hands and machines deal – 3 lightboxes with the restaurant menu.
